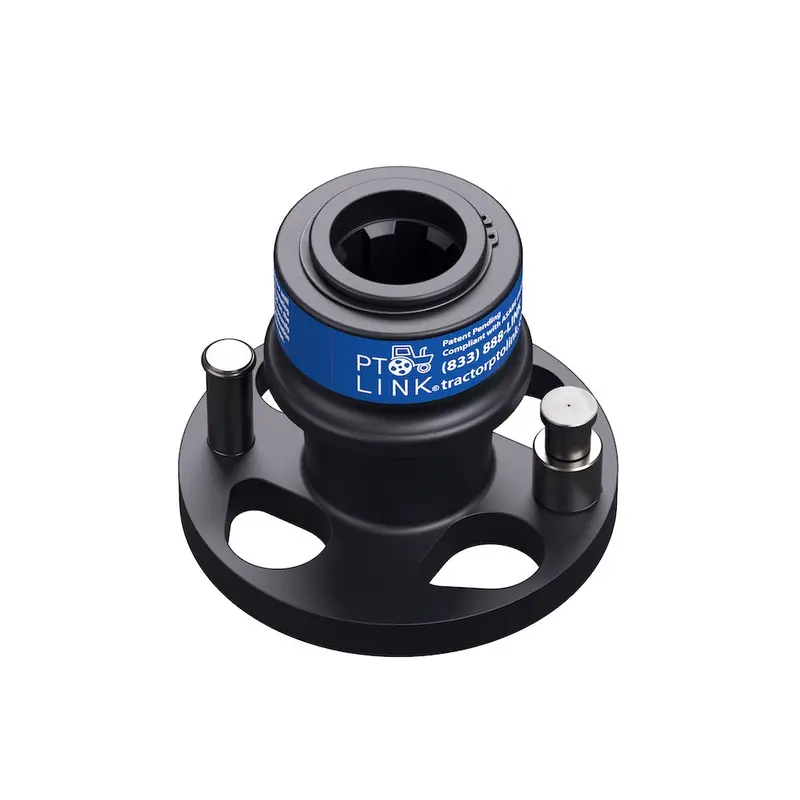

Heavy-Duty Quick-Connect Coupler (Female) – Tractor-Mounted, 35–130 HP Compatible

Description

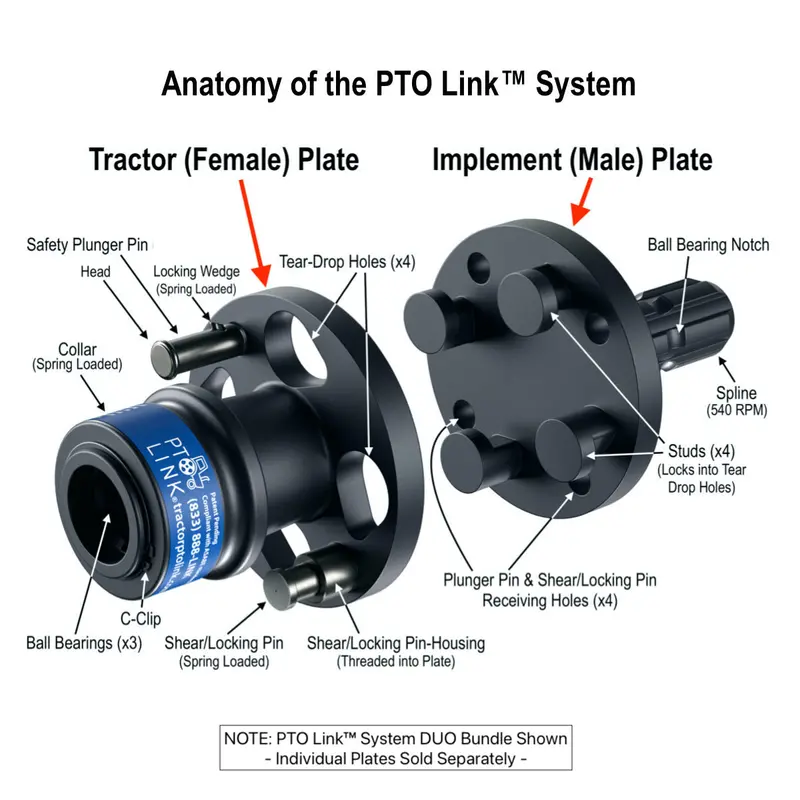

PTO LinkTM HD System – Tractor (Female) PlateThe PTO LinkTM HD system (for tractors 35 HP to 130 HP) is designed to quickly and safelyconnect/disconnect tractors and implements at the PTO… in seconds! The PTO LinkTM isthe original, universal quick-connect system that consists of two interconnecting plates(female and male). For best results, every tractor should have the Tractor (Female) Plateinstalled and every implement should have an Implement (Male) Plate installed.Product Features:• Works with rear 6-spline 540 RPM PTO for tractors 35 HP to 130 HP• Designed for all size implements including large flex-wing/batwing cutters• Simple one-step installation and easy removal for each plate. No special tools or installationhardware required• Built to last (AISI 4140 hardened alloy steel with QPQSM finish)• Safety Plunger Pin (or Safety Bolt) included with every tractor (female) plate (extras orderedseparately)• Adds approximately 5 inches to the overall length of the driveline, when fully installed.• The PTO LinkTM is NOT an adapter. To be in compliance with ASABE standards, do not use thePTO LinkTM system in combination with PTO adapters.• Limited warranty covers all manufacturing defects in materials or workmanship of all PTO LinkTMparts for one year from the date of purchase.• NOTE: This product is for a single HD Tractor (Female) Plate only. The HD Implement (Male)Plate will also be needed to complete the quick-connect system.• Compatibility: the PTO LinkTM HD System (Blue Label) is NOT compatible or interchangeablewith other PTO LinkTM systems (Red or White Label), due to the specific design of matingcomponents for other systems.Safety Notice: As an important safety precaution, be sure to turn off tractor’s engine during installation,shield any rotating parts and do not wear any loose clothing that could become entangled and pulledinto the machine. PTO safety is extremely important and every precaution should be takenOther PTO LinkTM products:• PTO LinkTM Compact System for tractors up to 40 HP• Dimensions:HD Tractor (Female) Plate (4.75” W x 3.875” H)• Weight:HD Tractor (Female) Plate: 4 lbs, 3 ozHD Tractor (Female) Plate shipping weight: 5 lbs
